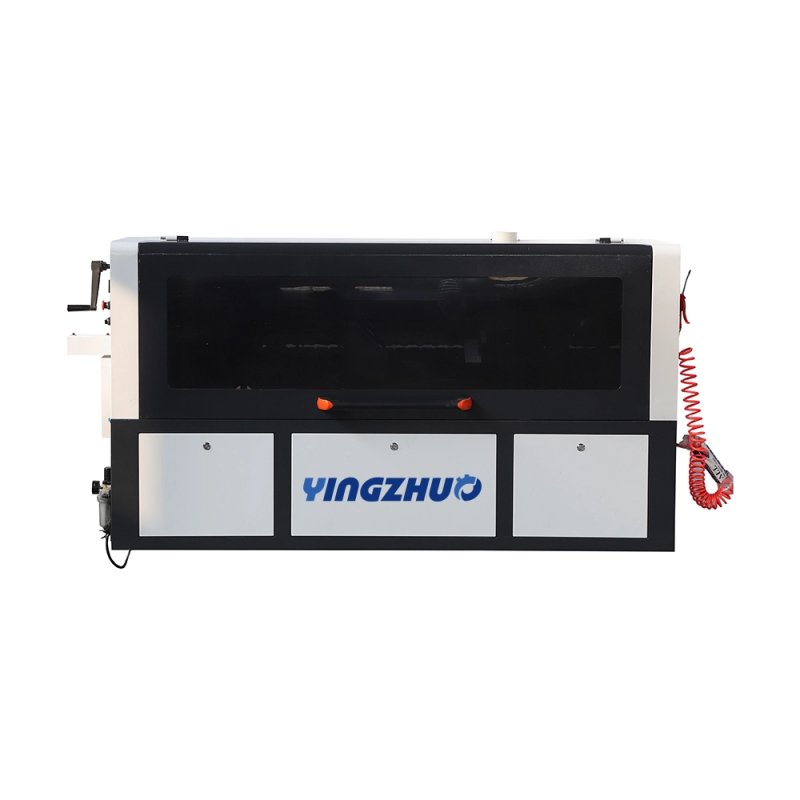

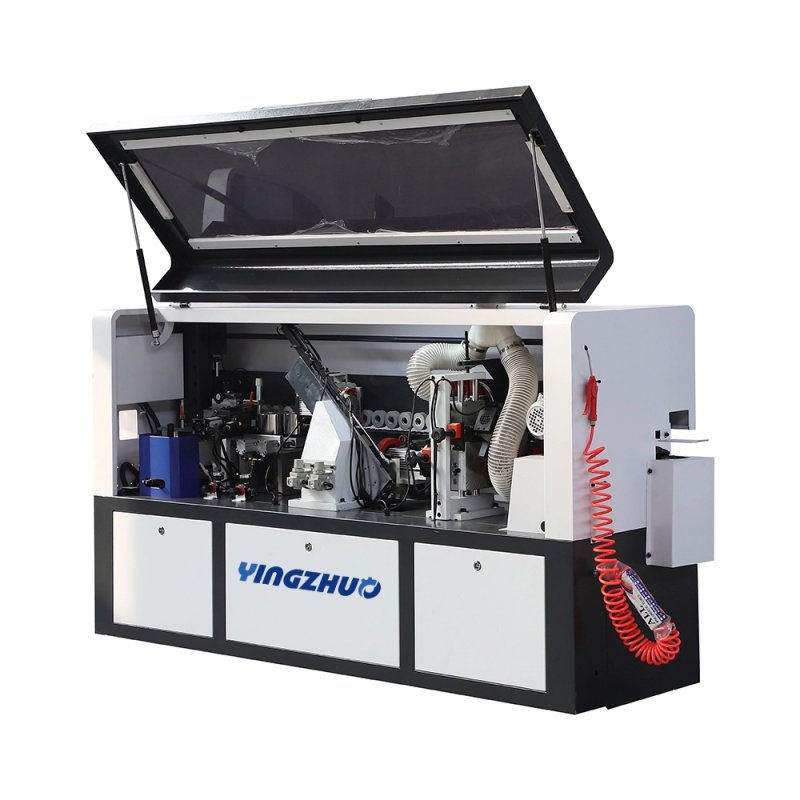

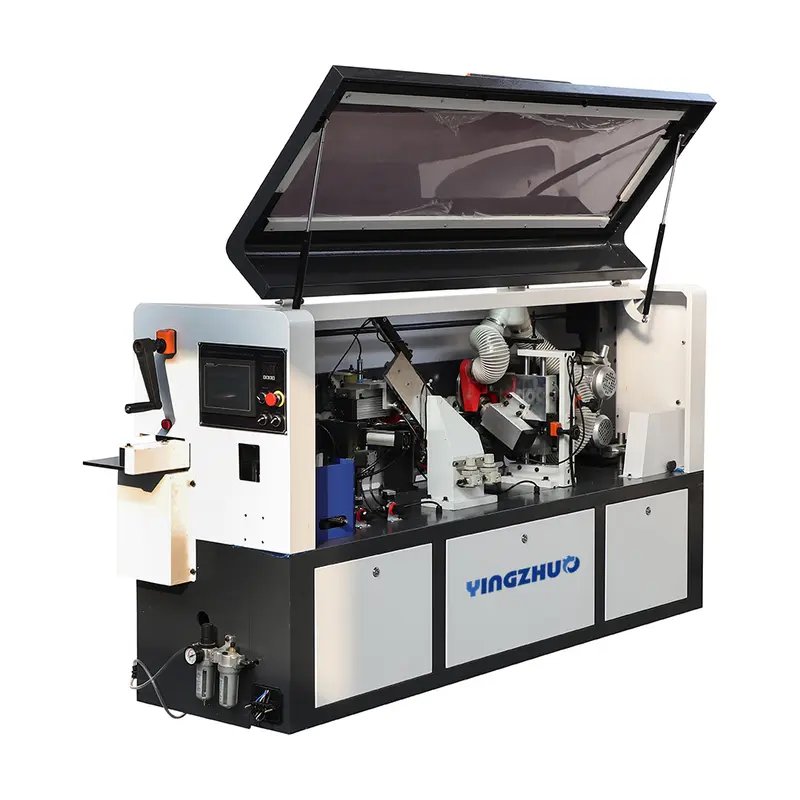

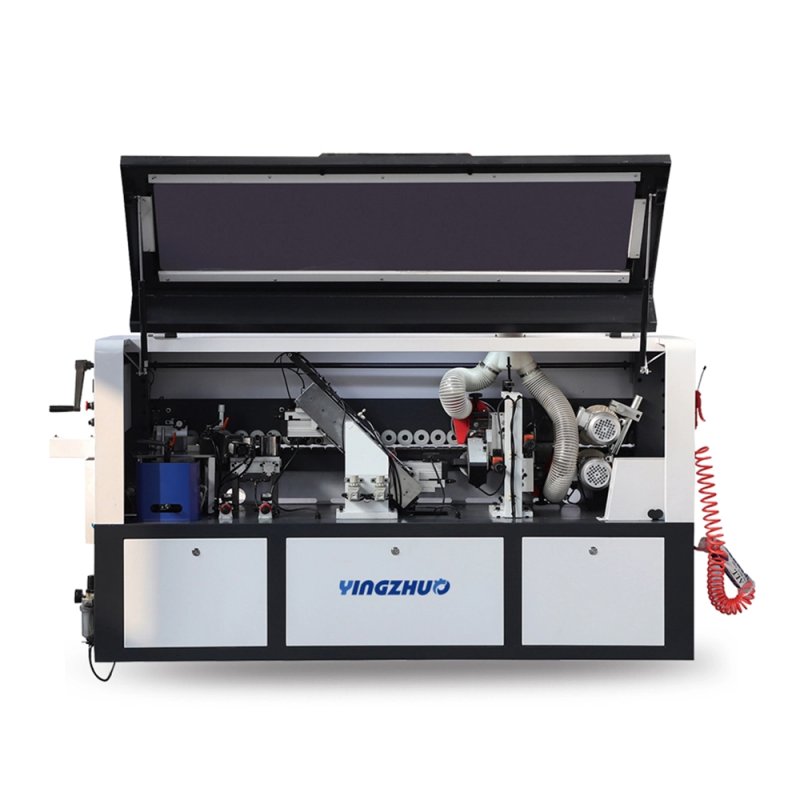

YZ-S1
The YZ-S1 edgebanding machine sets a new benchmark for high-speed automated edgebanding in furniture and cabinet making. The cutting-edge YZ-S1 edgebanding machine is designed for industrial-scale production.
Inquire Now
Email subscription
Join our newsletter to stay up to date on featuresand releases
Contact Us
product details
Online Message
Related products
product details
| Model | YZ-S1 |
| Function | Gluing→End trimming→Fine trimming→Buffing |
| Feeding speed | 16m/min |
| Panel length | ≥120mm |
| Panel width | ≥50mm |
| Band width | 12-60mm |
| Band thickness | 0.4-3mm |
| Weight | 650kg |
| Total power | 7.5kw |
| Pneumatic pressure | 0.6Mpa-0.8Mpa |
| Machine size | 2300*750*1250mm |
