Cold Press Machine for Wood Panel and Plywood Production
A cold press machine is widely used in furniture manufacturing, plywood processing and wood panel production. It applies stable pressure to glued panels without using an external heating system.
Compared with manual pressing, a hydraulic cold press provides more uniform pressure, higher production efficiency and more consistent bonding quality.
A suitable wood cold press machine can be used for plywood, MDF, particleboard, veneer panels, wooden doors and other furniture components.

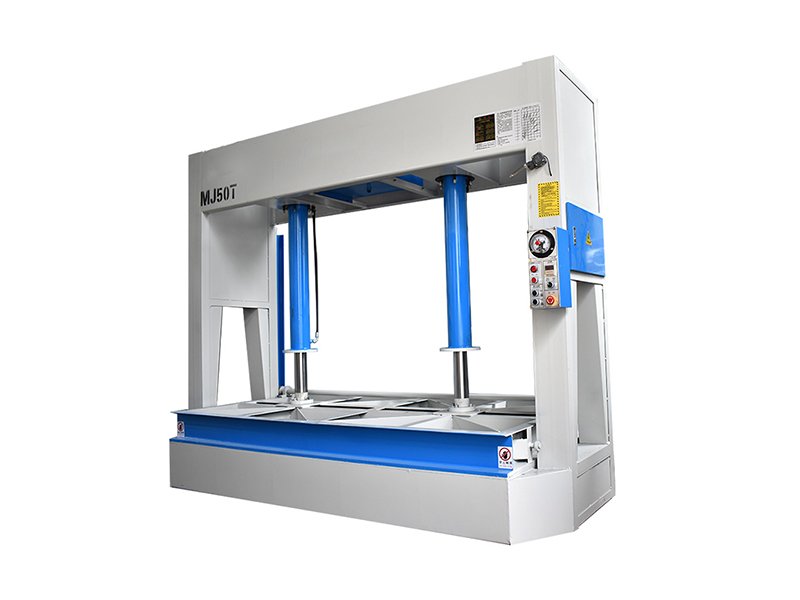

Recommended image: Full view of the cold press machine
Alt Text: Hydraulic cold press machine for wood panel production
Caption: Hydraulic cold press for plywood and furniture panel pressing.
What Does a Cold Press Machine Do?
A cold press machine applies pressure to glued wood panels and holds them in position during the bonding process.
The machine does not heat the panels directly. Instead, the adhesive cures under pressure at room temperature or according to the glue manufacturer’s requirements.
A hydraulic cold press machine can be used for:
Plywood pressing
Veneer laminating
MDF panel bonding
Particleboard processing
Wooden door production
Cabinet panel manufacturing
Furniture component assembly
Decorative panel production
Stable pressure helps reduce gaps between layers and improves the flatness of finished panels.
Main Advantages of a Hydraulic Cold Press
Uniform Pressing Pressure
A hydraulic cold press applies stable pressure across the workpiece. This helps glued layers bond evenly and reduces problems such as loose edges, air gaps and uneven surfaces.
Improved Panel Flatness
Proper pressing keeps wood panels flat during the curing process. This is especially important for plywood, veneered boards and laminated furniture panels.
Reduced Manual Work
Manual clamping requires considerable time and labor. A hydraulic wood press machine allows operators to load panels, set the pressure and complete the pressing process more efficiently.
Flexible Applications
A wood cold press machine can process different panel materials, sizes and thicknesses. It is suitable for both standard furniture production and customized woodworking projects.
Lower Energy Consumption
Because the machine does not require a heating system, its energy consumption is normally lower than that of a hot press machine.
Recommended image: Wood panels loaded inside the press
Alt Text: Wood panel cold press applying hydraulic pressure
Caption: Stable hydraulic pressure improves panel bonding and flatness.
Cold Press Machine for Plywood Production
A cold press machine for plywood is used to pre-press glued veneer layers before further processing.
The pressing process helps:
Improve contact between veneer layers
Remove excess air
Maintain panel alignment
Reduce movement during handling
Prepare plywood for the next production stage
Cold pressing can also reduce the time required for loading and processing during subsequent hot pressing.
The required pressure and pressing time depend on the veneer material, adhesive type, panel thickness and production process.
Applications in Furniture Manufacturing
A cold press for wood is commonly used in the production of:
Kitchen cabinets
Wardrobe panels
Wooden doors
Office furniture
Tables and shelves
Veneered panels
Decorative boards
Hotel furniture
Customized wood products
It can work together with a panel saw, CNC router, edge banding machine and sanding machine to form a complete furniture production line.
Important Features to Consider
Pressing Force
The required pressing force depends on the panel material, workpiece size and adhesive process.
A machine with insufficient pressure may produce uneven bonding, while excessive pressure may damage the panel or squeeze out too much adhesive.
Working Table Size
The platen size should match the maximum dimensions of the panels processed by the factory.
Buyers should also consider the available loading space around the machine.
Opening Height
The opening height determines the maximum stack or workpiece thickness that can be loaded into the press.
Hydraulic System
A reliable hydraulic system provides stable pressure and smooth machine operation.
Buyers should check the hydraulic cylinder, pump, valves and pressure-control components.
Machine Frame
A strong frame helps resist deformation during pressing. Stable construction is important for maintaining long-term pressing accuracy.
Control System
A clear control panel allows operators to adjust pressure, pressing time and machine operation.
Some hydraulic cold press machines also include automatic pressure holding and timer functions.
Safety Protection
The machine should include emergency stop controls, pressure protection and safe operating procedures.
Operators should receive proper training before using the equipment.
Cold Press Machine Price
Cold press machine price depends on several factors, including:
Pressing force
Working table size
Opening height
Number of hydraulic cylinders
Motor power
Hydraulic component brands
Control system
Machine frame structure
Automation level
A basic wood panel cold press may be suitable for a small furniture workshop, while a heavy-duty hydraulic cold press machine is more suitable for continuous industrial production.
When comparing quotations, buyers should evaluate the complete machine configuration, pressure stability, warranty and spare-parts support rather than focusing only on the lowest price.
Cold Press Machine or Hot Press Machine?
Cold press and hot press machines are used for different production processes.
A cold press machine applies pressure without external heating. It is suitable for panel pre-pressing, room-temperature bonding and furniture component assembly.
A hot press machine combines pressure with heat. It is commonly used when the adhesive requires controlled heating or when faster curing is needed.
Some plywood and furniture factories use both machines. The cold press completes the pre-pressing process, while the hot press completes final bonding under heat and pressure.
Recommended image: Machine inspection, finished panels or container loading
Alt Text: Hydraulic wood press machine inspected before shipment
Caption: Cold press machines are tested before packing and international delivery.
Choose the Right Wood Cold Press Machine
A reliable cold press machine can help wood product manufacturers improve bonding quality, panel flatness and production efficiency.
Before requesting a quotation, buyers should provide:
Panel material
Maximum panel size
Panel or stack thickness
Required pressing force
Adhesive type
Required pressing time
Daily production capacity
Local voltage and frequency
Based on this information, the supplier can recommend a suitable hydraulic cold press and prepare an accurate technical proposal.
